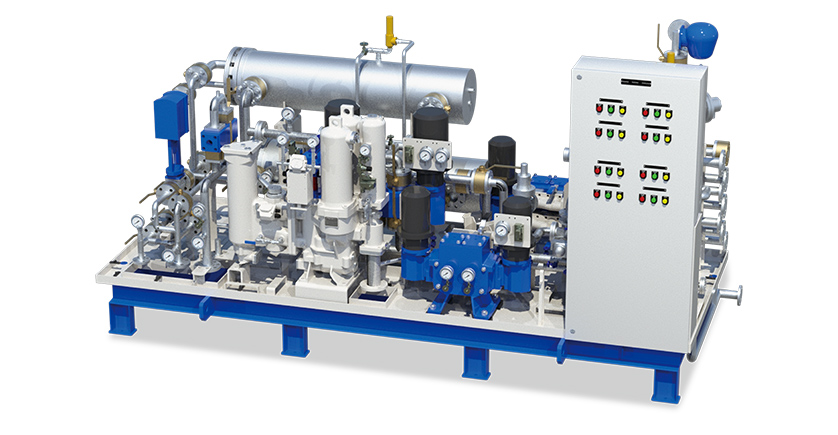

Booster Unit

Create Customer value through innovative system Engineering

  • MnSi Fuel Supply Booster Unit and Purifier Unit can enhance the efficiency and performance of main engine by keeping fuel temperature, pressure and viscosity in best conditions, which contribute to the excellent productivity for ship and plant operation.
  • Benefits

    • Availability of engine room space by compact size
    • Simple and easy installation by compact structure and all nozzle connections in bottom plate
    • Easy operation and maintenance by optimal layout.

    Quality

    • High reliability and safety by quality key components and 3D design
    • Complete functional test and commissioning at shop as well as Onboard.

    Application

    • Diesel engine fuel oil operation for Power and Marine application.

    Main Components and Options

    Item Components Options
    CV - 01 3-Way HFO/MDO Change - over Valve Local ( Manual )
    Remote ( Air / Electic )
    Automatic ( Temp & Time )
    P - 01 / 02 Supply Pumps
    FQ - 1 Flow Meter Volume
    Mass
    T - 01 Mixing Vessel
    P - 03 / 04 Circulating Booster Pumps
    H - 01 / 02 Heaters Steam
    Electric
    Thermal Oil
    V - 01 Viscosity Control System Local Controller
    Remote ( ECR )
    F - 01 Automatic Filter 10 / 25 / 34 / 50μm
    By-Pass Manual Fiter
    Indicator Filter
    P - 05 MDO Pump Electric Motor
    Air Motor
    SP-01/02 Purifier Selfjector
